1456132 | Phoenix Contact

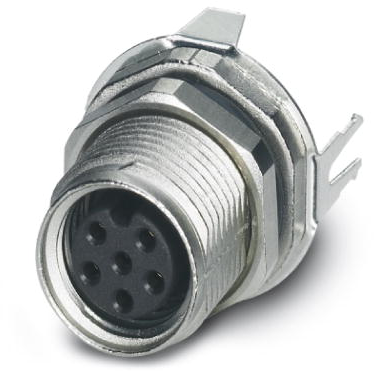

Socket, M8, 6 pole, solder pins, screw locking, straight, 1456132
Order No.: 61P8743
EAN: 4046356605755
MPN:
1456132
SACC-DSI-M8FS-6CON-M10-L180 SH
Unit Price (€ / pc.)
17.3383 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1456132, Phoenix Contact
Sensor/actuator flush-type connector, socket, 6-pole M8, rear/screw mounting with M10 fastening thread, with straight solder connection.
Features
- Easy PCB assembly
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For high transmission reliability
Technical specifications
| Version | socket | |
| Thread size | M8 | |
| Coding | A | |
| Contact connection | solder pins | |
| contact surface | gold-plated | |
| Assembly | rear/screw mounting | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
