1456093 | Phoenix Contact
Panel socket, M8, 4 pole, strand connection, straight, 1456093
Unit Price (€ / pc.)
28.8932 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
28.89 € *
Price list
Quantity
Price per unit*
1 pcs.
28.8932 €
10 pcs.
25.4184 €
50 pcs.
23.7048 €
150 pcs.
22.6576 €
500 pcs.
21.5033 €
*incl. VAT plus shipping costs
Subject to prior sale

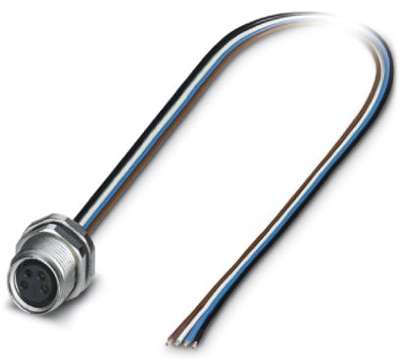

Device connector, 1456093, Phoenix Contact

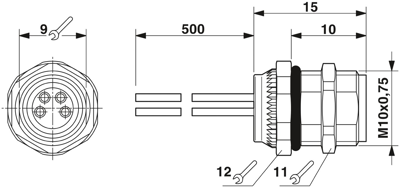

Device connector, rear mounting, 4-position, Socket, straight, M8, Rear mounting, M10, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M8 | |
| Coding | A | |
| Additional parts | equipped | |
| Assembly | rear mounting | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Product type | panel socket | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP67 | |
| Contact connection | strand connection | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
