1456019 | Phoenix Contact

Plug, M8, 4 pole, solder pins, screw locking, straight, 1456019

Order No.: 61P8621
EAN: 4046356605946
MPN:
1456019
SACC-DSI-M 8MS-4CON-L180 SH
Series: SACC
1456019 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
13.09 € *
Available: 19 pcs.
Available in 5 Days: 2,985 pcs. - if ordered today
Total Price:
13.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.09 €

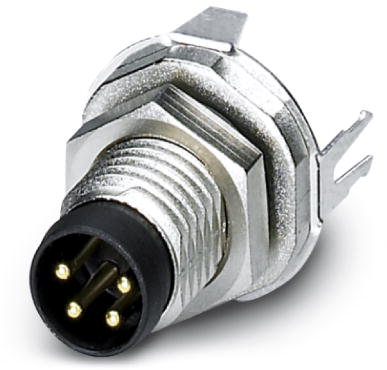

Sensor-actuator connector, 1456019, Phoenix Contact

Sensor/actuator flush-type connector, connector, 4-pole M8, rear/screw mounting with M8 fastening thread, with straight solder connection.

Features

  • Easy PCB assembly
  • A-coded
  • Overvoltage category: II
  • Degree of protection: IP67
  • Pollution degree: 3

Applications

  • For high transmission safety
Technical specifications
Filter Property Value
Product type plug
Degree of protection (IP) IP67
Orientation straight
Pin number 4 pole
Coding A
Contact connection solder pins
contact surface gold-plated
Assembly rear/screw mounting
Thread size M8
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
