1453452 | Phoenix Contact
Panel socket, M8, 4 pole, strand connection, straight, 1453452
Unit Price (€ / pc.)
26.8702 € *
Available in 10 days: 348 pcs. - if ordered today

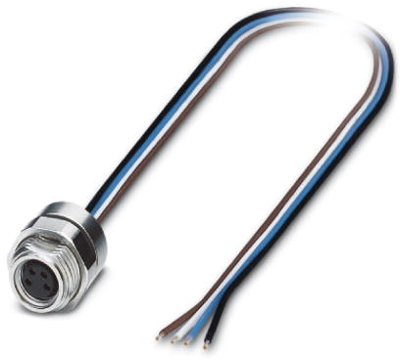

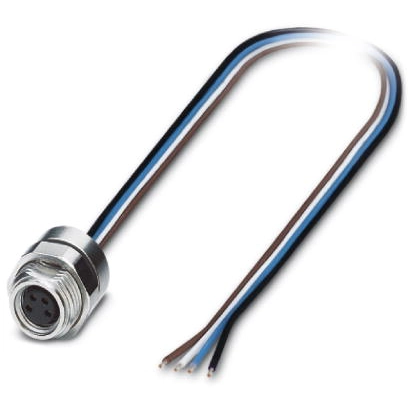

Sensor-actuator connector, 1453452, Phoenix Contact
Device connector, rear mounting, 4-position, Socket, straight, M8, Rear mounting, M12 x 1, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Overvoltage category: I
- Pollution degree: 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Assembly | rear mounting | |
| Pin number | 4 pole | |
| Version | cable 0.5 m | |
| Contact connection | strand connection | |
| Product type | panel socket | |
| Degree of protection (IP) | IP67 | |
| Coding | A | |
| Thread size | M8 | |
| contact surface | gold-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
