1452068 | Phoenix Contact
Panel plug, M12, 5 pole, strand connection, straight, 1452068
Unit Price (€ / pc.)
62.1894 € *
Available in 5 Days: 13 pcs. - if ordered today
Total Price:
62.19 € *
Price list
Quantity
Price per unit*
1 pcs.
62.1894 €
5 pcs.
58.4647 €
10 pcs.
53.7880 €
25 pcs.
48.9447 €
*incl. VAT plus shipping costs
Subject to prior sale

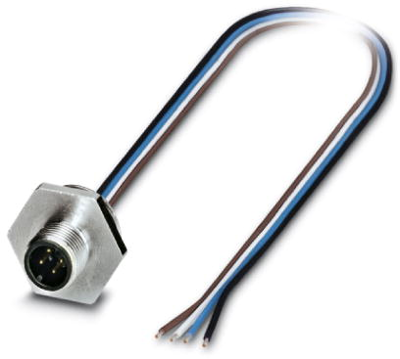

Device connector, 1452068, Phoenix Contact

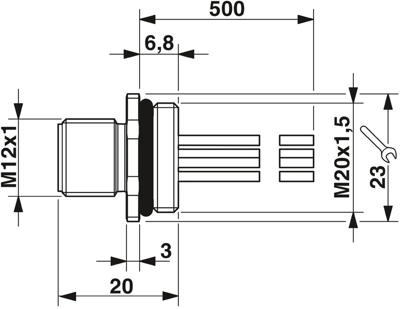

Device connector, 5-position, M12, Front mounting, M20 x 1,5, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Assembly | front mounting | |
| Contact connection | strand connection | |
| Coding | A | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67/IP69/IP69K | |
| contact surface | gold-plated | |
| Version | cable 0.5 m | |
| Product type | panel plug | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
