1446362 | Phoenix Contact
Panel plug, M12, 5 pole, strand connection, SPEEDCON locking, straight, 1446362
Order No.: 61P8953
EAN: 4046356628457
MPN:
1446362
SACC-EC-MS-5CON-M16/2,0 SCO

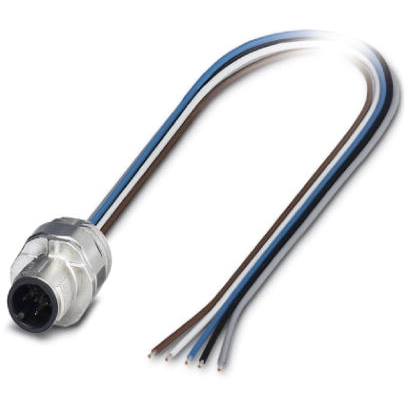

Sensor-actuator connector, 1446362, Phoenix Contact
Sensor/actuator male panel connector, 5-pin, M12-SPEEDCON, front panel/screw mounting with M16- thread, with 2.0 m TPE stranded wire, 5 x 0.34 mm².
Features
- Without status display
- A-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 2 m | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | SPEEDCON locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
