1441736 | Phoenix Contact
Panel socket, M12, 17 pole, strand connection, SPEEDCON locking, straight, 1441736
Unit Price (€ / pc.)
67.4135 € *
Available in 10 days: 2 pcs. - if ordered today

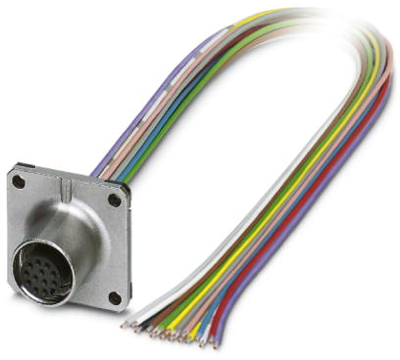

Sensor-actuator connector, 1441736, Phoenix Contact
Sensor/actuator flush-type socket, 17-pole, M12, front/square flange mounting, with 0.5 m TPE litz wire, 17 x 0.14 mm.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- Fast locking system
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Product type | panel socket | |
| Version | cable 0.5 m | |
| Pin number | 17 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | SPEEDCON locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
