1441613 | Phoenix Contact

Panel socket, M12, 17 pole, strand connection, SPEEDCON locking, straight, 1441613

Order No.: 61P9420
EAN: 4046356533928
MPN:
1441613
SACC-SQ-M12FS-17CON-25F/0,5
Series: SACC
1441613 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
68.7463 € *
Available in 10 days: 6 pcs. - if ordered today
Total Price:
68.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
68.7463 €

Sensor-actuator connector, 1441613, Phoenix Contact

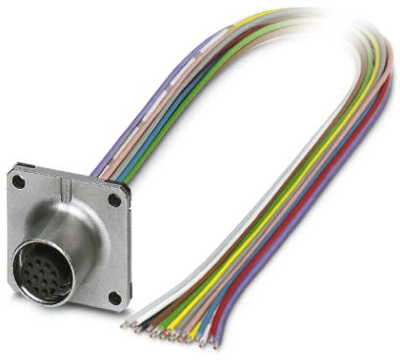

Sensor/actuator flush-type socket, 17-pole, M12, front/square flange mounting, with 0.5 m TPE litz wire, 17 x 0.14 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • Fast locking system
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For transmission of signals
  • For data transimission
Technical specifications
Product type panel socket
Version cable 0.5 m
Pin number 17 pole
Thread size M12
Coding A
Type of locking SPEEDCON locking
Orientation straight
Contact connection strand connection
contact surface nickel-plated/gold-plated
Additional parts equipped
Assembly front mounting
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
