1441008 | Phoenix Contact

Plug, M8, 3 pole, IDC connection, screw locking, straight, 1441008

Order No.: 61P9145
EAN: 4046356515894
MPN:
1441008
SACC-M 8MS-3QO-0,25-M
Series: SACC
1441008 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
21.1106 € *
Available in 10 days: 1,640 pcs. - if ordered today
Total Price:
21.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.1106 €

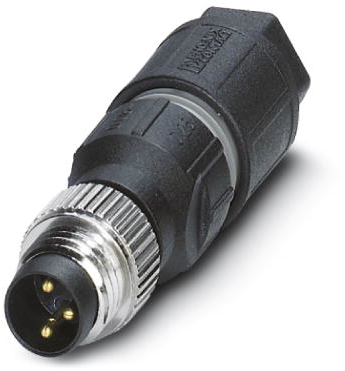

Sensor-actuator connector, 1441008, Phoenix Contact

Connector, Universal, 3-position, plug straight M8, Insulation displacement connection, knurl material: Nickel-plated brass, external cable diameter 2.5 mm - 5 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: I
  • Degree of protection: IP67
Technical specifications
Type of locking screw locking
Thread size M8
contact surface nickel-plated/gold-plated
Pin number 3 pole
Assembly cable assembly
Coding A
Orientation straight
Version plug
Contact connection IDC connection
Degree of protection (IP) IP65/IP67
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
