1438037 | Phoenix Contact

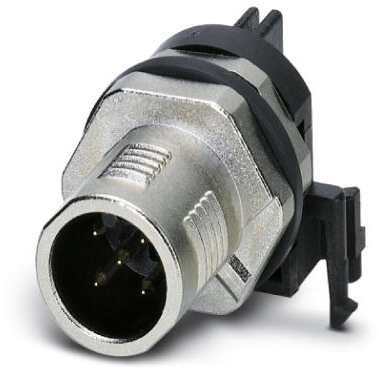

Panel socket, M12, 5 pole, solder pins, SPEEDCON locking, straight, 1438037
Unit Price (€ / pc.)
21.4914 € *
Available in 10 days: 70 pcs. - if ordered today
Total Price:
21.49 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4914 €
10 pcs.
19.7778 €
50 pcs.
18.1951 €
100 pcs.
16.5648 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1438037, Phoenix Contact
Sensor/actuator flush-type connector, connector, 5-pole, M12 SPEEDCON, shielded, rear/screw mounting with M12 thread, with polarity protection, with angled solder connection.
Features
- Shielded
- A-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Assembly | rear/screw mounting | |
| Pin number | 5 pole | |
| Contact connection | solder pins | |
| Product type | panel socket | |
| Degree of protection (IP) | IP67 | |
| Type of locking | SPEEDCON locking | |
| Coding | A | |
| Thread size | M12 | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
