1436564 | Phoenix Contact
Socket, M12, 4 pole, solder pins, screw locking, straight, 1436564
Unit Price (€ / pc.)
19.3613 € *
Available: 0 pcs.
Available in 10 days: 10 pcs.
Leadtime: 2 Weeks **
Total Price:
19.36 € *
Price list
Quantity
Price per unit*
1 pcs.
19.3613 €
10 pcs.
17.8143 €
50 pcs.
16.1959 €
100 pcs.
14.5775 €
*incl. VAT plus shipping costs
**Subject to prior sale

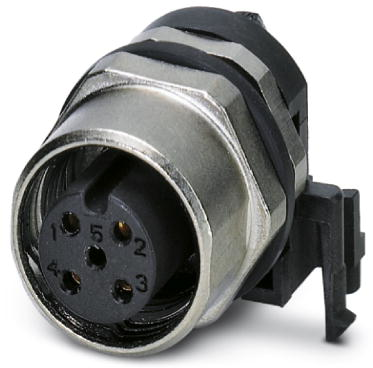

Sensor-actuator connector, 1436564, Phoenix Contact
Sensor/actuator flush-type socket, 5-pole, M12 SPEEDCON, rear/screw mounting with M12 thread, with polarity protection, with straight solder connection.
Features
- Unshielded
- B-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Type of locking | screw locking | |
| Thread size | M12 | |
| contact surface | gold-plated | |
| Pin number | 4 pole | |
| Assembly | rear/screw mounting | |
| Coding | A | |
| Orientation | straight | |
| Version | socket | |
| Contact connection | solder pins | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
