1436453 | Phoenix Contact

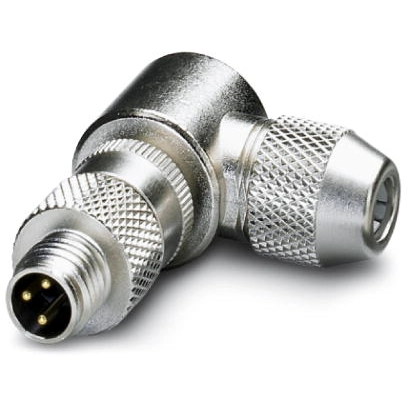

Plug, M8, 3 pole, solder connection, screw locking, angled, 1436453

Order No.: 61P9138
EAN: 4046356434515
MPN:
1436453
SACC-M 8MR-3CON-SH
Series: SACC
1436453 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
37.3541 € *
Available in 10 days: 135 pcs. - if ordered today
Total Price:
37.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.3541 €

Sensor-actuator connector, 1436453, Phoenix Contact

Connector, Universal, 3-position, shielded, Plug angled M8, Solder connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Type of locking screw locking
Thread size M8
contact surface gold-plated
Pin number 3 pole
Assembly cable assembly
Coding A
Orientation angled
Version plug
Contact connection solder connection
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
