1436411 | Phoenix Contact

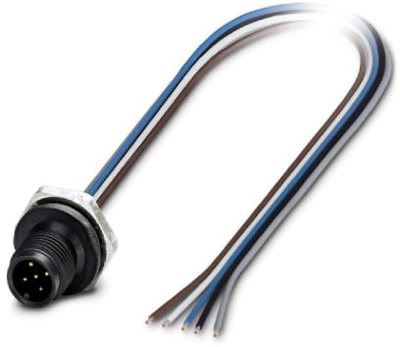

Panel plug, M12, 5 pole, strand connection, straight, 1436411
Unit Price (€ / pc.)
22.9075 € *
Standard delivery time from the manufacturer is: 3 Weeks
Sensor-actuator connector, 1436411, Phoenix Contact
Sensor/actuator flush-type connector, plug, 5-pole, M12, front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 5 x 0.25 mm².
Features
- Pre-assembled with litz wires for immediate use
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For transmission of signals
Technical specifications
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | A | |
| Version | cable 0.5 m | |
| Product type | panel plug | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
