1436408 | Phoenix Contact

Plug, M12, 8 pole, solder connection, screw locking, straight, 1436408

Order No.: 61P9044
EAN: 4046356438353
MPN:
1436408
SACC-E-M12MS-8CON-M16 PSCUP
Series: SACC
1436408 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
18.1713 € *
Available: 18 pcs.
Available in 5 Days: 19 pcs. - if ordered today
Total Price:
18.17 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1713 €
10 pcs.
16.7195 €
50 pcs.
15.2082 €
100 pcs.
13.6850 €
*incl. VAT plus shipping costs
Subject to prior sale

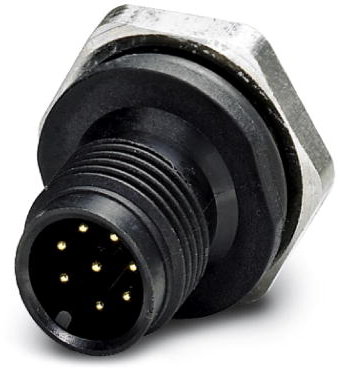

Sensor-actuator connector, 1436408, Phoenix Contact

Sensor/actuator flush-type connector, male, 8-pole, M12, front/screw mounting with M16 thread, with solder cups.

Features

  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Product type plug
Degree of protection (IP) IP67
Orientation straight
Pin number 8 pole
Coding A
Contact connection solder connection
contact surface gold-plated
Assembly front wall/screw mounting
Thread size M12
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
