1434879 | Phoenix Contact
Socket, M12, 5 pole, solder pins, screw locking, straight, 1434879
Unit Price (€ / pc.)
8.6632 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor-actuator connector, 1434879, Phoenix Contact

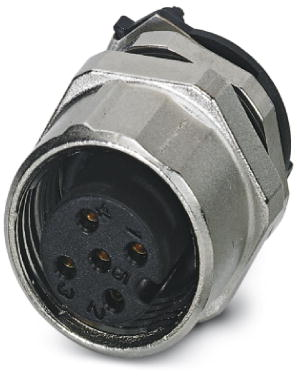

Sensor/actuator flush-type socket, 5-pole, M12 SPEEDCON, rear/screw mounting with M12 thread, with polarity protection, with straight THR solder connection.
Features
- Unshielded
- A-coded
- Overvoltage category: II
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Coding | A | |
| Degree of protection (IP) | IP67 | |
| Assembly | rear/screw mounting | |
| Contact connection | solder pins | |
| Pin number | 5 pole | |
| Version | socket | |
| Orientation | straight | |
| Thread size | M12 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
