1432457 | Phoenix Contact

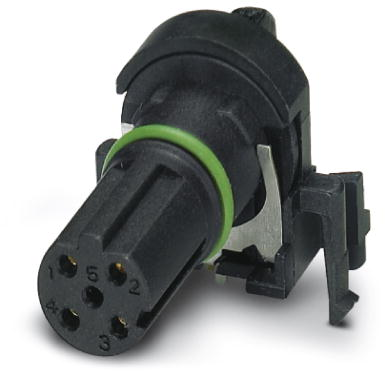

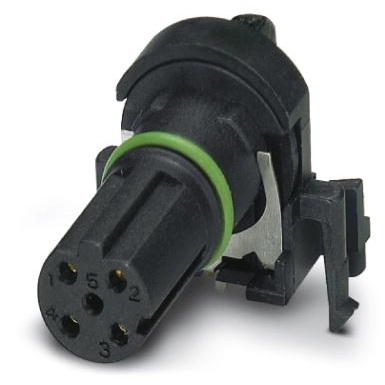

Panel socket, M12, 4 pole, solder pins, screw locking, angled, 1432457

Order No.: 61P8317
EAN: 4046356410748
MPN:
1432457
SACC-CI-M12FSD-4CON-L90 SCO
Series: SACC
1432457 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
11.2336 € *
Available in 10 days: 140 pcs. - if ordered today
Total Price:
11.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.2336 €

Sensor-actuator connector, 1432457, Phoenix Contact

Sensor/actuator flush-type connector, socket, 4-pole, shielded, with angled solder connection.

Features

  • Easy device integration
  • Two-piece device connector
  • D-coded
  • Pollution degree: 3
  • Overvoltage category: II

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Pin number 4 pole
Thread size M12
Coding D
Assembly PCB mounting
Degree of protection (IP) IP67
Product type panel socket
Type of locking screw locking
contact surface gold-plated
Orientation angled
Contact connection solder pins
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
