1430462 | Phoenix Contact

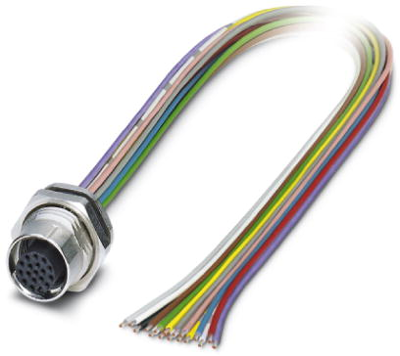

Panel socket, M12, 17 pole, strand connection, SPEEDCON locking, straight, 1430462

Order No.: 61P8564
EAN: 4046356325820
MPN:
1430462
SACC-DSI-FS-17CON-PG9/0,5 SCO
Series: SACC
1430462 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
69.4484 € *
Available in 10 days: 77 pcs. - if ordered today
Total Price:
69.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
69.4484 €

Sensor-actuator connector, 1430462, Phoenix Contact

Sensor/actuator flush-type socket, 17-pole, M12 SPEEDCON, rear/screw mounting with Pg9 thread, with 0.5 m halogen-free TPE litz wire, 17 x 0.14 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • A-coded
  • Fast locking system
  • Pollution degree: 3
  • Overvoltage category: II

Applications

  • For high transmission safety
Technical specifications
Filter Property Value
Product type panel socket
Version cable 0.5 m
Pin number 17 pole
Thread size M12
Coding A
Type of locking SPEEDCON locking
Orientation straight
Contact connection strand connection
contact surface gold-plated
Additional parts equipped
Assembly rear mounting
Degree of protection (IP) IP65/IP67
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
