1425642 | Phoenix Contact

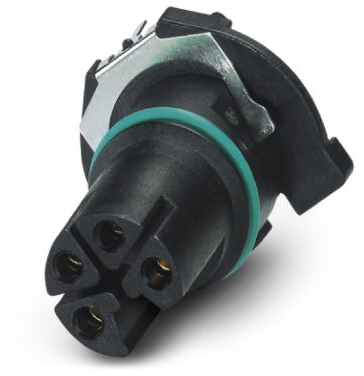

Panel socket, M12, 4 pole, solder connection, straight, 1425642

Order No.: 61P8325
EAN: 4055626431635
MPN:
1425642
SACC-CI-M12FSL-4CON-L180THRSHR
Series: SACC
1425642 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
8.7465 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
524.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
60 pcs.
8.7465 €

Sensor-actuator connector, 1425642, Phoenix Contact

Flush-type connector, Power, 4-position, Socket, straight, PCB mounting, THR solder connection.

Features

  • Easy device integration
  • Two-piece device connector
  • L-coded
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Contact connection solder connection
Assembly PCB mounting
Thread size M12
contact surface gold-plated
Degree of protection (IP) IP67
Coding L
Pin number 4 pole
Orientation straight
Product type panel socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
