1425638 | Phoenix Contact

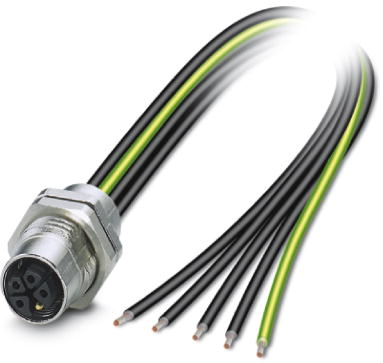

Panel socket, M12, 5 pole, strand connection, straight, 1425638

Order No.: 61P8668
EAN: 4055626425924
MPN:
1425638
SACC-DSI-M12FSK4PE-M16/0,2-1,5
Series: SACC
1425638 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
31.8087 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
31.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
31.8087 €

Power connector, 1425638, Phoenix Contact

Device connector, rear mounting, Power, 5-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm², UL/cUL stranded hook-up wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • K-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For high transmission safety
Technical specifications
Filter Property Value
Coding K
Product type panel socket
Version cable 0.2 m
Contact connection strand connection
Degree of protection (IP) IP67
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 5 pole
Thread size M12
Assembly rear mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
