1425630 | Phoenix Contact

Panel socket, M12, 5 pole, strand connection, straight, 1425630

Order No.: 61P8672
EAN: 4055626425795
MPN:
1425630
SACC-DSI-M12FSL4FEM16/0,2GR-1,
Series: SACC

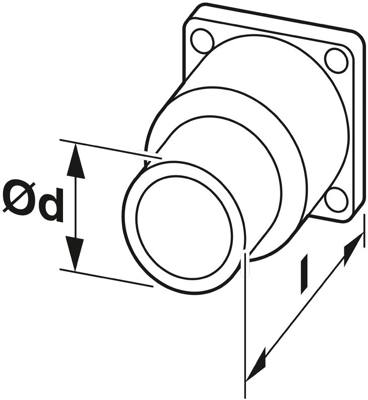

1425630 Phoenix Contact Sensor-Actuator Connectors Image 1
1425630 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.9043 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
30.90 € *
Price list
Quantity
Price per unit*
1 pcs.
30.9043 €
5 pcs.
29.0479 €
15 pcs.
27.9412 €
50 pcs.
26.7036 €
150 pcs.
25.5850 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, 1425630, Phoenix Contact

Device connector, Rear mounting, Power, 5-position, Flush-type female connector, Straight, M12-Standard, Coding: L , On free cable end, M16 x 1.5, Individual wires, Cable length: 0.2 m, 1.31 mm², UL/cUL stranded hook-up wire.

Features

  • For compact devices: transmit high power in a confined space
  • Easy-to-install, optimized XL housing contour with wrench size 19
  • Mechanical tightening limitation for long-term-stable gasket
  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
Filter Property Value
Coding L
Product type panel socket
Version cable 0.2 m
Contact connection strand connection
Degree of protection (IP) IP67
Orientation straight
Additional parts equipped
contact surface gold-plated
Pin number 5 pole
Thread size M12
Assembly rear mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
