1425584 | Phoenix Contact

Panel plug, M12, 5 pole, strand connection, straight, 1425584

Order No.: 61P8723
EAN: 4055626424330
MPN:
1425584
SACC-DSI-M12MSL4FE-M16XL/0,2GR
Series: SACC

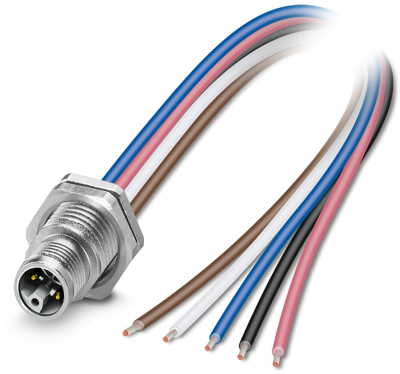

1425584 Phoenix Contact Sensor-Actuator Connectors Image 1

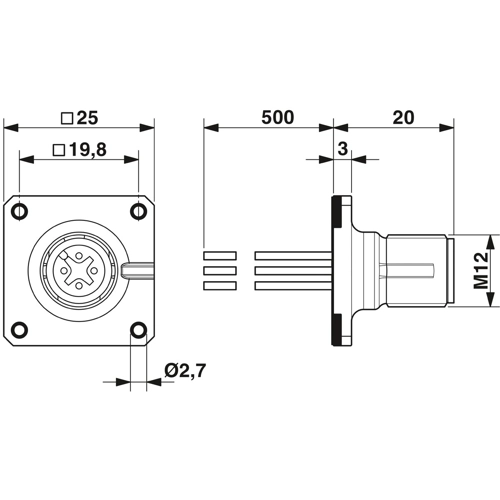

1425584 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.6544 € *
Available: 1 pcs.
Available in 5 Days: 3 pcs. - if ordered today
Total Price:
30.65 € *
Price list
Quantity
Price per unit*
1 pcs.
30.6544 €
5 pcs.
28.8218 €
15 pcs.
27.7151 €
50 pcs.
26.4894 €
150 pcs.
25.3827 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, 1425584, Phoenix Contact

Device connector, Rear mounting, Power, 5-position, Flush-type male connector, Straight, M12-Standard, coding: L , On free cable end, M16 x 1.5, Individual wires, Cable length: 0.2 m, 2.50 mm², TPE litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
  • SPEEDCON fast locking system reduces cabling times
Technical specifications
Filter Property Value
Pin number 5 pole
Degree of protection (IP) IP65/IP67
Version cable 0.2 m
Assembly rear mounting
Additional parts equipped
Coding L
contact surface nickel-plated/gold-plated
Orientation straight
Contact connection strand connection
Thread size M12
Product type panel plug
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
