1424694 | Phoenix Contact

Socket, M12, 4 pole, push-in, screw locking, angled, 1424694

Order No.: 65P1440
EAN: 4055626376219
MPN:
1424694
SACC-M12FR-4PL
Series: SACC
1424694 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
17.1479 € *
Available in 10 days: 69 pcs. - if ordered today
Total Price:
17.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.1479 €

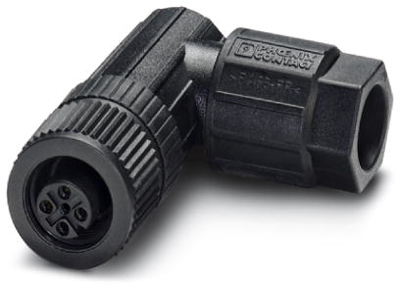

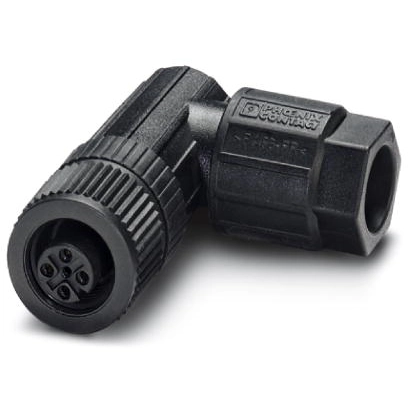

Sensor-actuator connector, 1424694, Phoenix Contact

Connector, Universal, 4-position, unshielded, Socket angled M12, Push-lock spring connection, knurl material: Plastic, external cable diameter 4 mm - 8 mm.

Features

  • Time-saving Push-Lock connection
  • Shock- and vibration-resistant connection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Pin number 4 pole
Type of locking screw locking
Contact connection push-in
Product type socket
Coding A
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP65/IP67
Thread size M12
contact surface nickel-plated/gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
