1424661 | Phoenix Contact

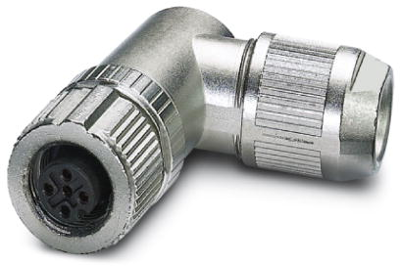

Jack, M12, 5 pole, push-in, screw locking, angled, 1424661
Unit Price (€ / pc.)
35.1883 € *
Available in 5 Days: 667 pcs. - if ordered today
Total Price:
35.19 € *
Price list
Quantity
Price per unit*
1 pcs.
35.1883 €
10 pcs.
31.6659 €
25 pcs.
28.5005 €
50 pcs.
25.6445 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1424661, Phoenix Contact
Connector, Universal, 5-position, shielded, Socket angled M12, Push-lock spring connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm - 8 mm.
Features
- Time-saving Push-Lock connection
- Shock- and vibration-resistant connection
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Orientation | angled | |
| Contact connection | push-in | |
| Pin number | 5 pole | |
| Product type | jack | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | nickel-plated/gold-plated | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
