1424240 | Phoenix Contact

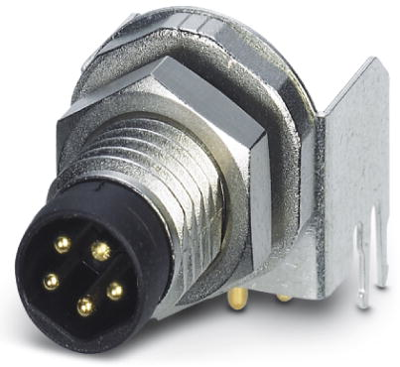

Plug, M8, 5 pole, solder pins, screw locking, angled, 1424240
Unit Price (€ / pc.)
22.2768 € *
Standard delivery time from the manufacturer is: 12 Weeks
Sensor-actuator connector, 1424240, Phoenix Contact
Sensor/actuator flush-type connector, plug, 5-pole, DeviceNet, M8, rear/screw mounting with M10 fastening thread, with angled solder connection.
Features
- Easy PCB assembly
- B-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For high transmission reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | B | |
| Orientation | angled | |
| Contact connection | solder pins | |
| Pin number | 5 pole | |
| Product type | plug | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Assembly | rear/screw mounting | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
