1424235 | Phoenix Contact

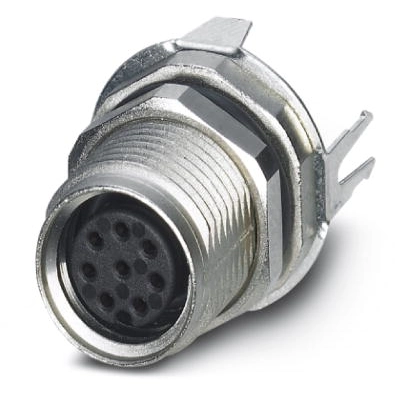

Socket, M8, 8 pole, solder pins, screw locking, straight, 1424235
Unit Price (€ / pc.)
20.3966 € *
Available: 0 pcs.
Available in 10 days: 480 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 1424235, Phoenix Contact
Sensor/actuator flush-type connector, socket, 8-pole M8, rear/screw mounting with M10 fastening thread, with straight solder connection.
Features
- Easy PCB assembly
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Applications
- For high transmission reliability
Technical specifications
| contact surface | gold-plated | |
| Contact connection | solder pins | |
| Pin number | 8 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Version | socket | |
| Type of locking | screw locking | |
| Coding | A | |
| Assembly | rear/screw mounting | |
| Thread size | M8 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
