1424233 | Phoenix Contact
Panel socket, M8, 5 pole, strand connection, straight, 1424233
Unit Price (€ / pc.)
30.4878 € *
Available in 10 days: 6 pcs. - if ordered today

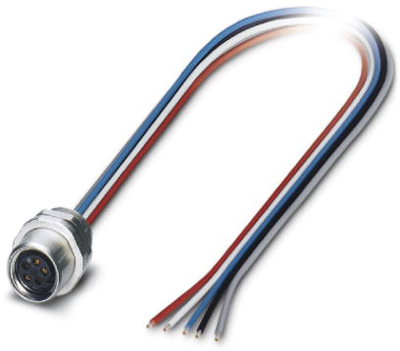

Sensor-actuator connector, 1424233, Phoenix Contact
Flush-type connector, DeviceNet, 5-position, Socket, straight, M8, Front mounting, M10, Individual wires, cable length: 0.5 m, 0.25 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- B-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | front mounting | |
| Orientation | straight | |
| Coding | B | |
| Version | cable 0.5 m | |
| Product type | panel socket | |
| Additional parts | equipped | |
| Contact connection | strand connection | |
| Thread size | M8 | |
| contact surface | gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
