1424230 | Phoenix Contact
Panel plug, M8, 8 pole, strand connection, straight, 1424230
Unit Price (€ / pc.)
42.0189 € *
Available in 5 Days: 1 pcs. - if ordered today

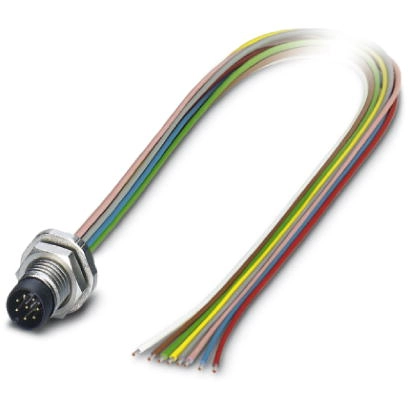

Sensor-actuator connector, 1424230, Phoenix Contact
Device connector, rear mounting, 8-position, Plug, straight, M8, Rear mounting, M8 x 1, Individual wires, cable length: 0.5 m, 0.14 mm², PVC litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M8 | |
| Orientation | straight | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | rear mounting | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Additional parts | equipped | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
