1424133 | Phoenix Contact

Panel socket, M12, 4 pole, strand connection, straight, 1424133

Order No.: 61P8676
EAN: 4046356693356
MPN:
1424133
SACC-DSI-M12FSS-4CON-M16/0,5PE
Series: SACC
1424133 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
32.7607 € *
Available in 10 days: 27 pcs. - if ordered today
Total Price:
32.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.7607 €

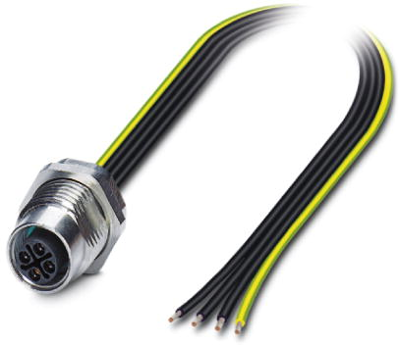

Power connector, 1424133, Phoenix Contact

Device connector, rear mounting, Power, 4-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire.

Features

  • Pre-assembled with litz wires for immediate use
  • S-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Pin number 4 pole
Contact connection strand connection
Assembly rear mounting
Version cable 0.5 m
Product type panel socket
Coding S
Orientation straight
Degree of protection (IP) IP65/IP67
Thread size M12
contact surface gold-plated
Additional parts equipped
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
