1424130 | Phoenix Contact
Panel plug, M12, 4 pole, strand connection, SPEEDCON locking, straight, 1424130
Unit Price (€ / pc.)
24.1094 € *
Standard delivery time from the manufacturer is: On Request

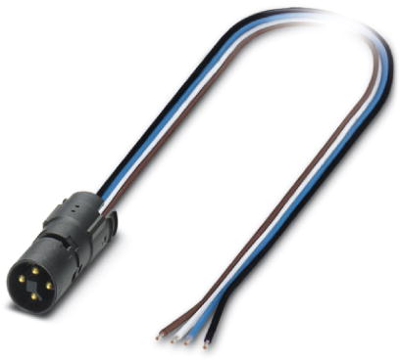

Sensor-actuator connector, 1424130, Phoenix Contact
Assembled contact carrier and insulator, 4 poles, 0.5 m strand length.
Features
- Convenient field assembly
- T-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting power
- For signal transmission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel plug | |
| Version | cable 0.5 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | T | |
| Type of locking | SPEEDCON locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
