1419784 | Phoenix Contact

Panel plug, M12, 4 pole, strand connection, SPEEDCON locking, straight, 1419784

Order No.: 61P9440
EAN: 4046356531764
MPN:
1419784
SACC-SQ-M12MS-4CON-20/0,5
Series: SACC
1419784 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
24.7639 € *
Available in 10 days: 543 pcs. - if ordered today
Total Price:
24.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.7639 €

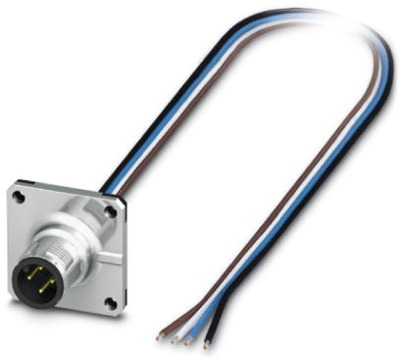

Sensor-actuator connector, 1419784, Phoenix Contact

Sensor/actuator flush-type plug, 4-pole, M12, front/square flange mounting, with 0.5 m TPE litz wire, 4 x 0.34 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • Fast locking system
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67

Applications

  • For transmission of signals
  • For data transimission
Technical specifications
Product type panel plug
Version cable 0.5 m
Pin number 4 pole
Thread size M12
Coding A
Type of locking SPEEDCON locking
Orientation straight
Contact connection strand connection
contact surface nickel-plated/gold-plated
Additional parts equipped
Assembly front mounting
Degree of protection (IP) IP67
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
