1419713 | Phoenix Contact

Panel socket, M12, 12 pole, strand connection, straight, 1419713

Order No.: 61P8628
EAN: 4046356533560
MPN:
1419713
SACC-DSI-M12FS-12CON-M16/0,5
Series: SACC

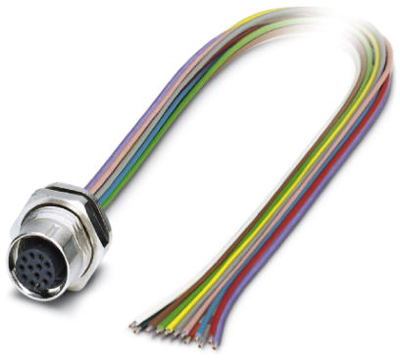

1419713 Phoenix Contact Sensor-Actuator Connectors Image 1

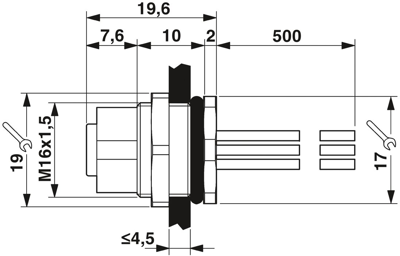

1419713 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
56.4298 € *
Available in 10 days: 3 pcs. - if ordered today
Total Price:
56.43 € *
Price list
Quantity
Price per unit*
1 pcs.
56.4298 €
5 pcs.
53.0621 €
10 pcs.
48.8138 €
25 pcs.
44.4227 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, 1419713, Phoenix Contact

Device connector, Rear mounting, Universal, 12-position, Flush-type female connector, Straight, M12-Standard, Coding: A , On free cable end, M16 x 1.5, Individual wires, Cable length: 0.5 m, 0.14 mm², TPE litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
  • SPEEDCON fast locking system reduces cabling times
Technical specifications
contact surface gold-plated
Additional parts equipped
Contact connection strand connection
Coding A
Pin number 12 pole
Version cable 0.5 m
Assembly rear mounting
Degree of protection (IP) IP65/IP67
Thread size M12
Orientation straight
Product type panel socket
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
