1419687 | Phoenix Contact

Panel plug, M12, 8 pole, strand connection, straight, 1419687

Order No.: 61P8707
EAN: 4046356533539
MPN:
1419687
SACC-DSI-M12MS-8CON-M16/0,5
Series: SACC
1419687 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
30.1903 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
30.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
30.1903 €

Sensor-actuator connector, 1419687, Phoenix Contact

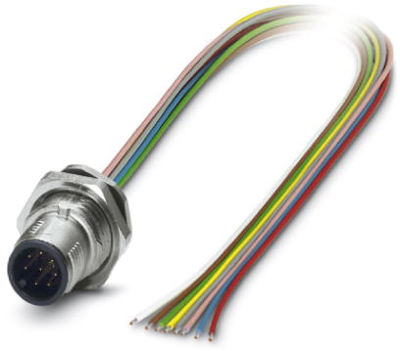

Sensor/actuator flush-type plug, 8-pole, M12 SPEEDCON, rear/screw mounting with M16 thread, with 0.5 m TPE litz wire, 8 x 0.25 mm².

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • A-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: II

Applications

  • For signal transmission
  • For data transimission
  • For power transimission
Technical specifications
Pin number 8 pole
Degree of protection (IP) IP65/IP67
Assembly rear mounting
Orientation straight
Coding A
Version cable 0.5 m
Product type panel plug
Additional parts equipped
Contact connection strand connection
Thread size M12
contact surface gold-plated
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
