1419658 | Phoenix Contact

Panel socket, M12, 5 pole, strand connection, straight, 1419658

Order No.: 67F5001
EAN: 4046356533508
MPN:
1419658
SACC-DSI-M12FS-5CON-M16/0,5
Series: SACC

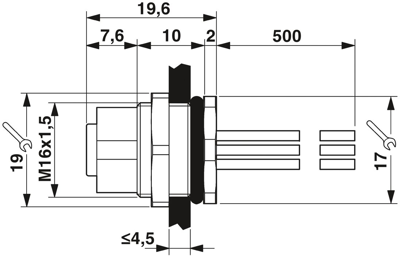

1419658 Phoenix Contact Sensor-Actuator Connectors Image 1

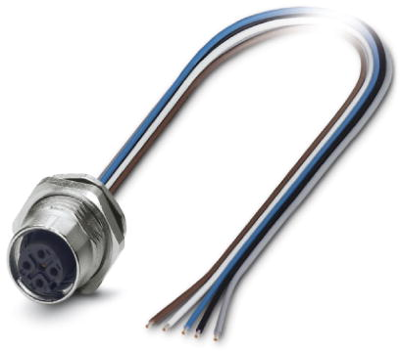

1419658 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.3859 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
17.39 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3859 €
5 pcs.
15.3153 €
20 pcs.
14.2681 €
50 pcs.
13.6255 €
100 pcs.
12.9472 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, 1419658, Phoenix Contact

Device connector, Rear mounting, Universal, 5-position, Flush-type female connector, Straight, M12-Standard, Coding: A , On free cable end, M16 x 1.5, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
  • SPEEDCON fast locking system reduces cabling times
Technical specifications
Filter Property Value
Version cable 0.5 m
Assembly rear mounting
contact surface gold-plated
Pin number 5 pole
Degree of protection (IP) IP65/IP67
Thread size M12
Contact connection strand connection
Coding A
Orientation straight
Product type panel socket
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
