1419629 | Phoenix Contact
Panel plug, M12, 4 pole, strand connection, straight, 1419629
Unit Price (€ / pc.)
23.9547 € *
Standard delivery time from the manufacturer is: 8 Weeks

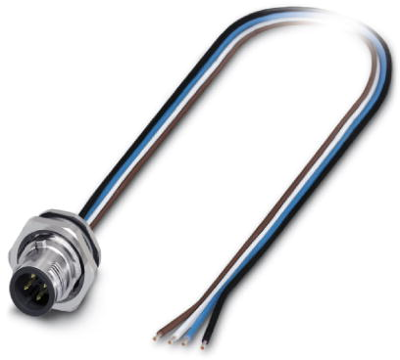

Sensor-actuator connector, 1419629, Phoenix Contact
Sensor/actuator flush-type plug, 4-pole, M12 SPEEDCON, rear/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm².
Features
- Pre-assembled with litz wires for immediate use
- Fast locking system
- A-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: II
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel plug | |
| Coding | A | |
| Assembly | rear mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67 | |
| Additional parts | equipped | |
| Version | cable 0.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
