1418342 | Phoenix Contact

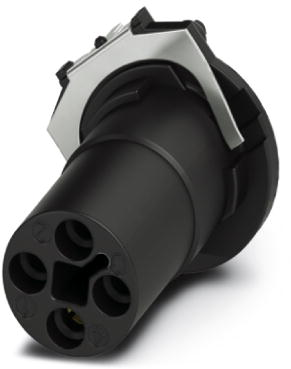

Panel socket, M12, 4 pole, solder connection, screw locking, straight, 1418342

Order No.: 61P8344
EAN: 4055626170671
MPN:
1418342
SACC-CI-M12FST-4CON-L180TOR SH
Series: SACC
1418342 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
7.3542 € *
Available in 10 days: 200 pcs. - if ordered today
Total Price:
735.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
7.3542 €

Power connector, 1418342, Phoenix Contact

Flush-type connector, Power, 4-position, Socket, straight, M12, PCB mounting, THR solder connection.

Features

  • Easy device integration
  • Two-piece device connector
  • T-coded
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Pin number 4 pole
Thread size M12
Coding T
Assembly PCB mounting
Degree of protection (IP) IP67
Product type panel socket
Type of locking screw locking
contact surface gold-plated
Orientation straight
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
