1415299 | Phoenix Contact

Panel socket, M12, 5 pole, strand connection, straight, 1415299

Order No.: 62P3934
EAN: 4055626056272
MPN:
1415299
SACC-DSI-M12FSL-4FE-M16XL/0,2
Series: SACC

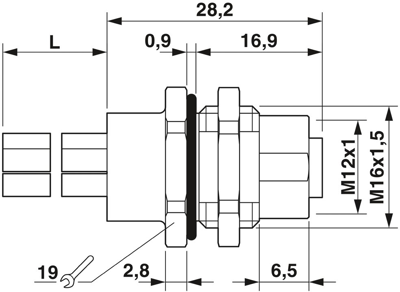

1415299 Phoenix Contact Sensor-Actuator Connectors Image 1

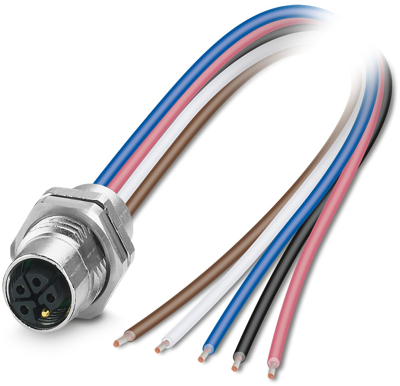

1415299 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.7060 € *
Available in 10 days: 2 pcs. - if ordered today
Total Price:
20.71 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7060 €
10 pcs.
18.6473 €
100 pcs.
16.7790 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 1415299, Phoenix Contact

Device connector, rear mounting, Power, 5-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm², PEX litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • L-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For transmitting high power
Technical specifications
Filter Property Value
Additional parts equipped
contact surface gold-plated
Coding L
Degree of protection (IP) IP67
Orientation straight
Version cable 0.2 m
Contact connection strand connection
Thread size M12
Assembly rear mounting
Pin number 5 pole
Product type panel socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
