1415295 | Phoenix Contact
Panel plug, M12, 5 pole, strand connection, straight, 1415295
Unit Price (€ / pc.)
26.0015 € *
Available in 10 days: 47 pcs. - if ordered today
Power connector, 1415295, Phoenix Contact

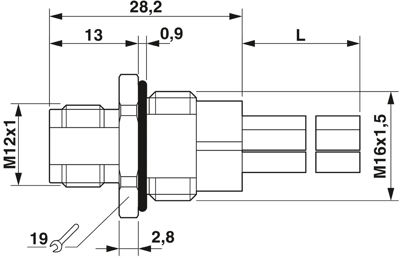

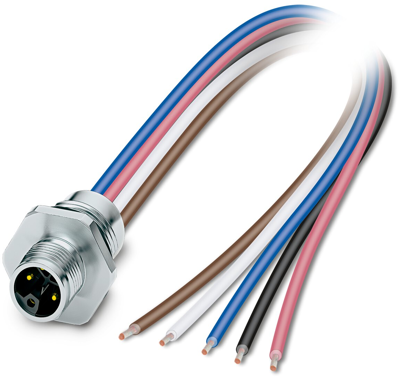

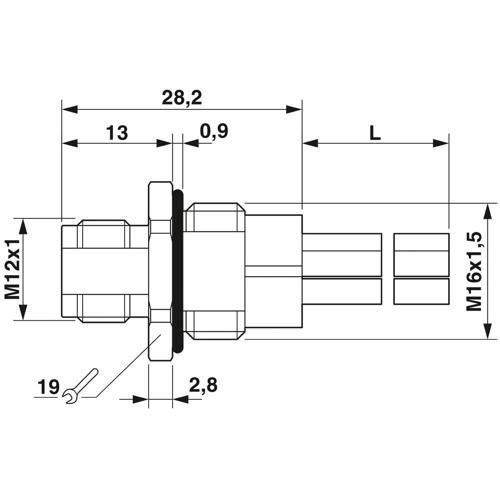

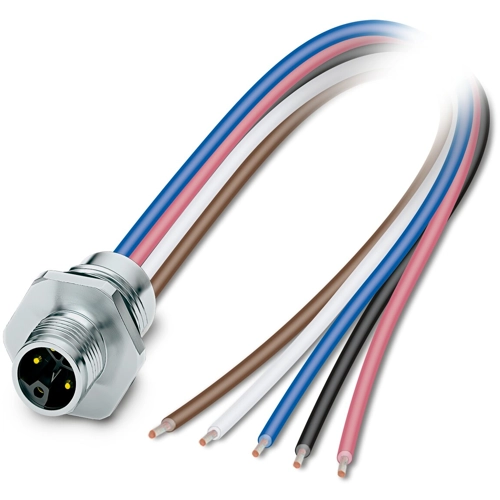

Flush-type connector, Power, 5-position, Plug, M12, Front mounting, Square flange, Individual wires, cable length: 0.2 m, 2.50 mm², PEX litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- L-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Additional parts | equipped | |
| Thread size | M12 | |
| Pin number | 5 pole | |
| Assembly | front mounting | |
| Product type | panel plug | |
| Contact connection | strand connection | |
| Coding | L | |
| Version | cable 0.2 m | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
