1415294 | Phoenix Contact

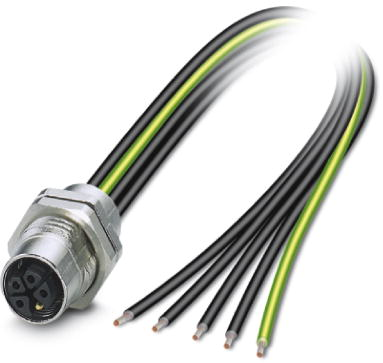

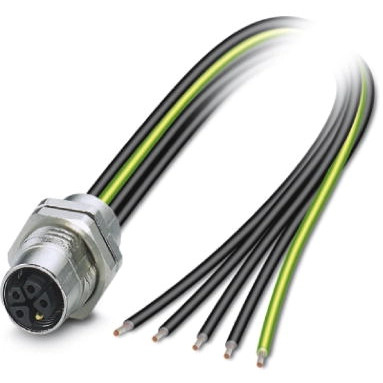

Panel socket, M12, 5 pole, strand connection, straight, 1415294
Unit Price (€ / pc.)
29.7143 € *
Available in 10 days: 4 pcs. - if ordered today
Power connector, 1415294, Phoenix Contact
Device connector, rear mounting, Power, 5-position, Socket, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm², PEX litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- K-coded
- Sealed on the litz wire side for optimum leak-tightness
- Pollution degree: 3
- Overvoltage category: III
Applications
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Coding | K | |
| Contact connection | strand connection | |
| Additional parts | equipped | |
| Product type | panel socket | |
| Thread size | M12 | |
| Pin number | 5 pole | |
| contact surface | gold-plated | |
| Assembly | rear mounting | |
| Orientation | straight | |
| Version | cable 0.2 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
