1415293 | Phoenix Contact

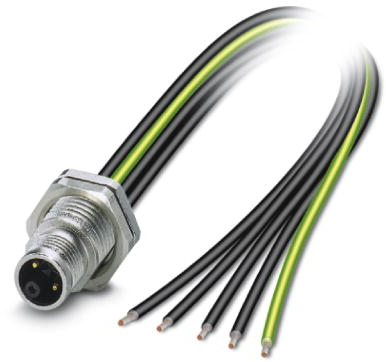

Panel plug, M12, 5 pole, strand connection, straight, 1415293

Order No.: 62P3937
EAN: 4055626056227
MPN:
1415293
SACC-DSI-M12MSK-4PE-M16XL/0,2
Series: SACC
1415293 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
28.9527 € *
Available in 5 Days: 28 pcs. - if ordered today
Total Price:
28.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.9527 €

Power connector, 1415293, Phoenix Contact

Device connector, rear mounting, Power, 5-position, Plug, M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm², PEX litz wire.

Features

  • Pre-assembled with litz wires for immediate use
  • Mechanical tightening limitation for long-term-stable gasket
  • K-coded
  • Sealed on the litz wire side for optimum leak-tightness
  • Pollution degree: 3
  • Overvoltage category: III

Applications

  • For high transmission safety
Technical specifications
Filter Property Value
Coding K
Pin number 5 pole
Assembly rear mounting
Orientation straight
Version cable 0.2 m
Additional parts equipped
Degree of protection (IP) IP67
Contact connection strand connection
contact surface gold-plated
Product type panel plug
Thread size M12
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
