1413993 | Phoenix Contact

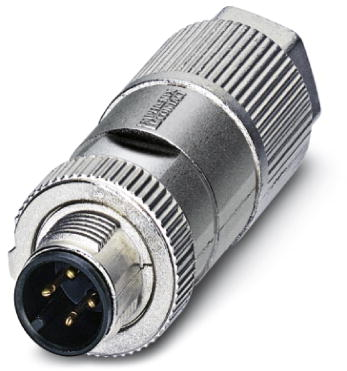

Plug, M12, 4 pole, IDC connection, screw locking, straight, 1413993

Order No.: 61P9399
EAN: 4055626013190
MPN:
1413993
SACC-MS-4QO-0,75 SH SCO
Series: SACC
1413993 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
33.6056 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
33.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.6056 €

Sensor-actuator connector, 1413993, Phoenix Contact

Connector, Universal, 4-position, halogen-free, shielded, plug straight M12 SPEEDCON, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm - 9.7 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Reliable signal transmission
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Orientation straight
Degree of protection (IP) IP65/IP67
Product type plug
Type of locking screw locking
Pin number 4 pole
Thread size M12
Coding A
Contact connection IDC connection
Assembly cable assembly
contact surface nickel-plated/gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
