1412261 | Phoenix Contact

Socket, M8, 6 pole, SMD, push-in, straight, 1412261

Order No.: 61P8534
EAN: 4046356989022
MPN:
1412261
SACC-CIP-M8FS-6P SMD SH R32
Series: SACC
1412261 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
6.0214 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
602.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
6.0214 €

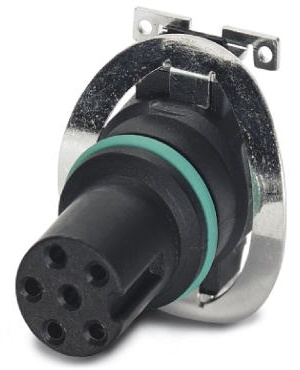

Sensor-actuator connector, 1412261, Phoenix Contact

Flush-type connector, 6-position, Socket, straight, M8, SMD.

Features

  • Easy device integration
  • Two-piece device connector
  • A-coded
  • Overvoltage category: II
  • Flammability rating according to UL 94: V0
  • Degree of protection: IP67
  • Contact material: CuZn
Technical specifications
Type of locking push-in
contact surface gold-plated
Coding A
Degree of protection (IP) IP67
Assembly PCB mounting
Contact connection SMD
Pin number 6 pole
Version socket
Orientation straight
Thread size M8
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
