1412252 | Phoenix Contact

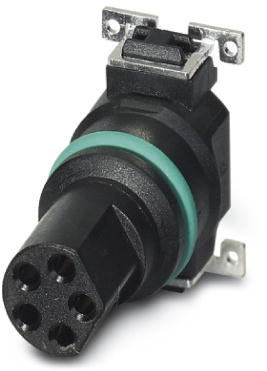

Socket, M8, 5 pole, SMD, screw locking, straight, 1412252

Order No.: 61P8543
EAN: 4046356988933
MPN:
1412252
SACC-CIP-M8FSB-5P SMD R32
Series: SACC
1412252 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
4.9385 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
493.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
4.9385 €

Sensor-actuator connector, 1412252, Phoenix Contact

Flush-type connector, Universal, 5-position, Socket, straight, M8, PCB mounting, SMD.

Features

  • Easy device integration
  • Two-piece device connector
  • B-coded
  • Overvoltage category: II
  • Flammability rating according to UL 94: V0
  • Degree of protection: IP67
  • Contact material: CuZn
Technical specifications
Type of locking screw locking
contact surface gold-plated
Coding B
Degree of protection (IP) IP67
Assembly PCB mounting
Contact connection SMD
Pin number 5 pole
Version socket
Orientation straight
Thread size M8
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
