1412240 | Phoenix Contact

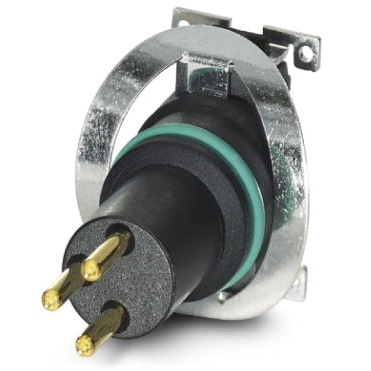

Plug, M8, 3 pole, SMD, push-in, straight, 1412240
Order No.: 61P8550
EAN: 4046356988827
MPN:
1412240
SACC-CIP-M8MS-3P SMD SH T
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Leadtime: On Request **
Sensor-actuator connector, 1412240, Phoenix Contact
Flush-type connector, 3-position, Plug, straight, M8, PCB mounting, SMD.
Features
- Easy device integration
- Two-piece device connector
- A-coded
- Overvoltage category: II
- Flammability rating according to UL 94: V0
- Degree of protection: IP67
- Contact material: CuZn
Technical specifications
| Version | plug | |
| Thread size | M8 | |
| Coding | A | |
| Contact connection | SMD | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | push-in |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
