1412235 | Phoenix Contact

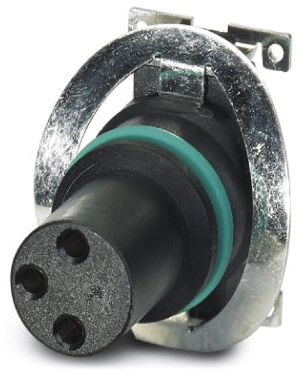

Panel socket, M8, 3 pole, SMD, push-in, straight, 1412235

Order No.: 61P8525
EAN: 4046356988773
MPN:
1412235
SACC-CIP-M8FS-3P SMD SH T
Series: SACC
1412235 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
4.1888 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.1888 €

Sensor-actuator connector, 1412235, Phoenix Contact

Flush-type connector, 3-position, Socket, straight, M8, PCB mounting, SMD.

Features

  • Easy device integration
  • Two-piece device connector
  • A-coded
  • Overvoltage category: I
  • Flammability rating according to UL 94: V0
  • Degree of protection: IP67
  • Contact material: CuZn
Technical specifications
Filter Property Value
Product type panel socket
Assembly PCB mounting
Orientation straight
Coding A
Type of locking push-in
contact surface gold-plated
Degree of protection (IP) IP67
Contact connection SMD
Pin number 3 pole
Thread size M8
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
