1412220 | Phoenix Contact

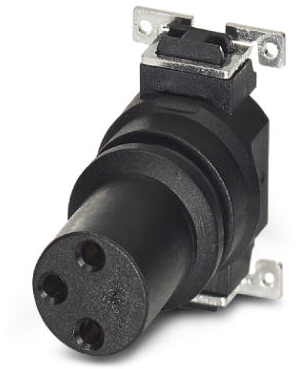

Panel socket, M8, 3 pole, SMD, screw locking, straight, 1412220
Unit Price (€ / pc.)
4.1650 € *
Available: 53 pcs.
Available in 5 Days: 300 pcs. - if ordered today
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1650 €
10 pcs.
3.7604 €
100 pcs.
3.1892 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1412220, Phoenix Contact
Flush-type connector, PCB mounting.
Features
- Without status display
- PCB mountable
- Contact material: CuZn
- Overvoltage category: II
- Flammability rating according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Assembly | PCB mounting | |
| Coding | A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | SMD | |
| Thread size | M8 | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
