1412014 | Phoenix Contact
Plug, M12, 8 pole, SMD, screw locking, straight, 1412014
Order No.: 61P8505
EAN: 4046356992879
MPN:
1412014
SACC-CIP-M12MS-8P SMD SH R32
Unit Price (€ / pc.)
7.4851 € *
Available: 0 pcs.
Leadtime: On Request **

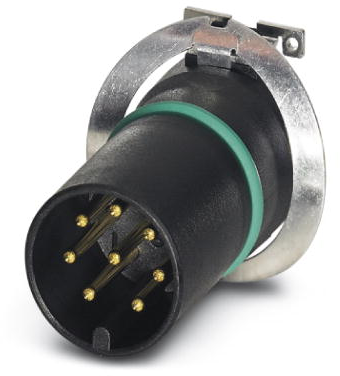

Sensor-actuator connector, 1412014, Phoenix Contact
Flush-type connector, 8-position, Plug, straight, M12, PCB mounting, SMD.
Features
- Easy device integration
- Two-piece device connector
- A-coded
- Pollution degree: 3
- Overvoltage category: III
- Flammability rating according to UL 94: V0
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | SMD | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
