1411995 | Phoenix Contact
Socket, M12, 12 pole, SMD, screw locking, straight, 1411995
Order No.: 61P8448
EAN: 4046356992268
MPN:
1411995
SACC-CIP-M12FS-12P SMD R32
Unit Price (€ / pc.)
12.0309 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

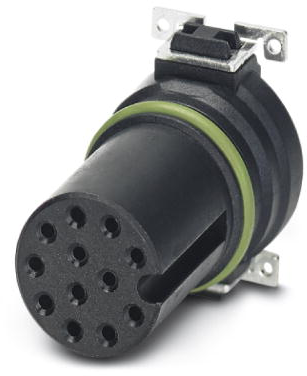

Sensor-actuator connector, 1411995, Phoenix Contact
Flush-type connector, 12-position, Socket, straight, M12, PCB mounting, SMD.
Features
- Easy device integration
- Two-piece device connector
- A-coded
- Pollution degree: 3
- Overvoltage category: III
- Flammability rating according to UL 94: V0
Technical specifications
| Version | socket | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | SMD | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
