1411956 | Phoenix Contact

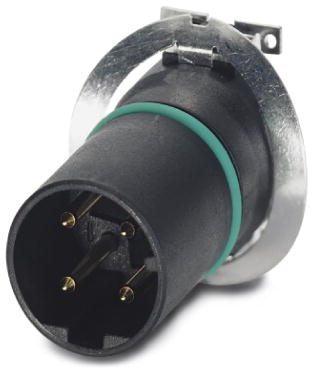

Plug, M12, 4 pole, SMD, screw locking, straight, 1411956

Order No.: 61P8516
EAN: 4046356991544
MPN:
1411956
SACC-CIP-M12MSD-4P SMD SH T
Series: SACC
1411956 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
4.641 € *
Available: 0 pcs.
Available in 10 days: 120 pcs.
Leadtime: 2 Weeks **
Total Price:
4.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.641 €

Sensor-actuator connector, 1411956, Phoenix Contact

Flush-type connector, Ethernet/PROFINET CAT5 (100 Mbps), 4-position, Plug, straight, M12, PCB mounting, SMD.

Features

  • Easy device integration
  • Two-piece device connector
  • D-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Flammability rating according to UL 94: V0
Technical specifications
Type of locking screw locking
Thread size M12
contact surface gold-plated
Pin number 4 pole
Assembly PCB mounting
Coding D
Orientation straight
Version plug
Contact connection SMD
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
