1411942 | Phoenix Contact

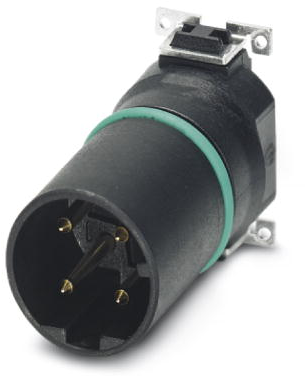

Plug, M12, 4 pole, SMD, screw locking, straight, 1411942

Order No.: 61P8517
EAN: 4046356990738
MPN:
1411942
SACC-CIP-M12MSD-4P SMD T
Series: SACC
1411942 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
3.6295 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.6295 €

Sensor-actuator connector, 1411942, Phoenix Contact

Flush-type connector, 4-position, Plug, straight, M12, PCB mounting, SMD.

Features

  • Easy device integration
  • Two-piece device connector
  • D-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Flammability rating according to UL 94: V0
Technical specifications
Type of locking screw locking
contact surface gold-plated
Coding D
Degree of protection (IP) IP67
Assembly PCB mounting
Contact connection SMD
Pin number 4 pole
Version plug
Orientation straight
Thread size M12
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
