1411655 | Phoenix Contact

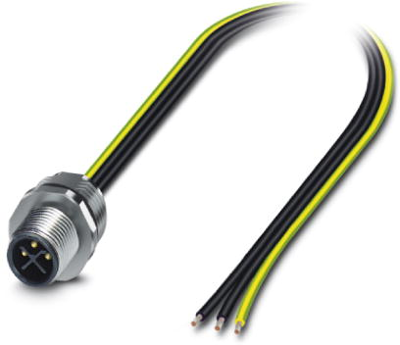

Panel plug, M12, 3 pole, strand connection, straight, 1411655
Unit Price (€ / pc.)
27.0963 € *
Available in 10 days: 1 pcs. - if ordered today
Power connector, 1411655, Phoenix Contact
Flush-type connector.
Features
- Pre-assembled with litz wires for immediate use
- Mechanical tightening limitation for long-term-stable gasket
- Sealed on the litz wire side for optimum leak-tightness
- S-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Pin number | 3 pole | |
| contact surface | nickel-plated/gold-plated | |
| Contact connection | strand connection | |
| Product type | panel plug | |
| Coding | S | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Version | cable 0.5 m | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | front mounting |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
